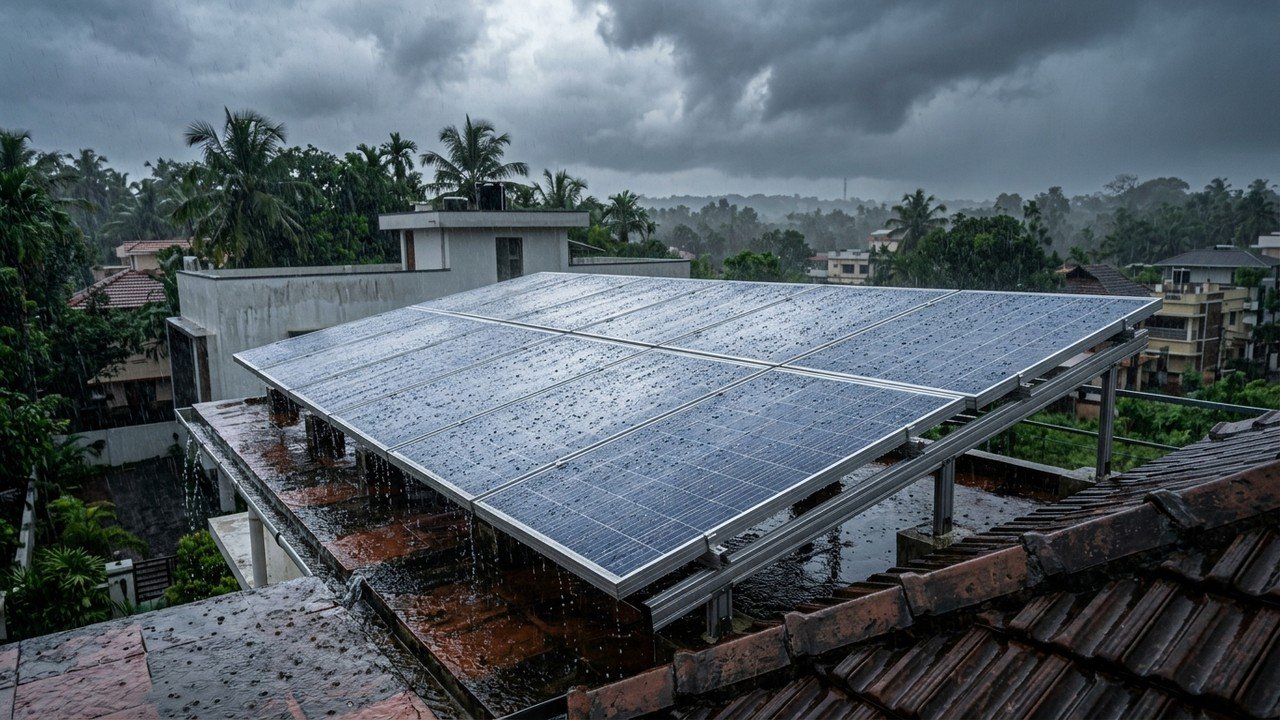

Protecting Solar Arrays During Monsoons & Heavy Rain
While solar panels are built to endure harsh outdoor weather with toughened tempered glass and anodized aluminum frames, the Indian monsoon season brings intense downpours, high humidity, and localized waterlogging. These conditions often lead to Inverter Isolation Faults (Error E04) and low insulation resistance tripping.
30-Second Quick Takeaways
Essential monsoon maintenance and troubleshooting steps
- Common Monsoon Inverter Faults: Heavy monsoon rains and 90%+ ambient humidity often trigger 'Low Insulation Resistance' (Isolation Fault / Error E04) on grid-tied inverters when water enters DC cable joints or junction boxes.
- How Isolation Protection Works: Before starting daily generation, the string inverter measures the resistance between DC conductors and ground. If Riso drops below 1 MΩ due to water leakage, the inverter trips to prevent electric shock or short circuits.
- Fixing MC4 Connector Leakage: Ensure all roof-mounted MC4 connectors are elevated off the roof floor using UV-resistant cable ties and sealed with IP68 heat-shrink tubing.
- Monsoon Silver Lining: Natural heavy rainwater washes away months of caked atmospheric dust and bird droppings, restoring 100% module optical transparency for post-monsoon peak generation.
Monsoon Maintenance & Inspection Checklist
Elevate Roof-Laid DC Cables & MC4 Connectors
Never leave MC4 connectors lying in standing rainwater pools on flat concrete terraces. Secure all connectors to mounting rails using UV-stabilized nylon cable ties at least 15cm above roof level.
Inspect IP67/IP68 Distribution Box Gaskets
Check rubber sealing gaskets on DC Distribution Boards (DCDB) and AC Distribution Boards (ACDB) to ensure cable glands are tightly clamped, preventing moisture condensation inside breaker boxes.
Verify Chemical Gel Earthing Pits
Monsoon rainwater improves soil conductivity, reducing earthing resistance below 1 Ohm. Verify that earthing pit inspection covers are sealed so mud does not clog pit chambers.
