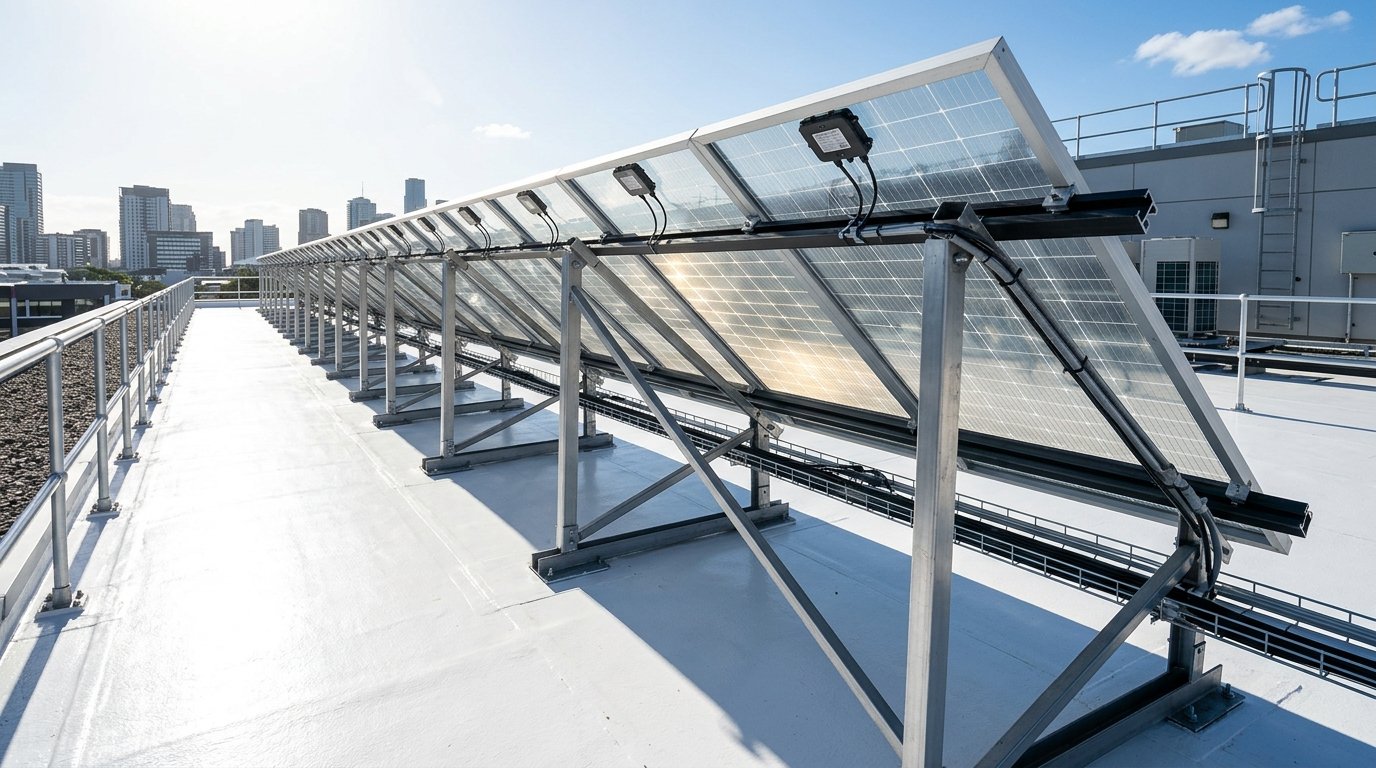

SolarCalculatorsBifacial Solar Trackers: Backtracking Algorithms & Diffuse Light Yield Guide 2026
1. Single-Axis Tracking Geometry: TrueTracking vs Standard Astronomy
Horizontal Single-Axis Trackers rotate modules from East to West along a North-South torque tube axis. The instantaneous astronomical tracker angle (\(\theta\)) is calculated based on solar zenith (\(\theta_z\)) and solar azimuth (\(\gamma_s\)):
\[\tan(\theta) = \frac{\tan(\theta_z) \times \sin(\gamma_s - \gamma_{\text{axis}})}{\cos(\theta_z)}\]However, during early morning (07:00 AM – 09:00 AM) and late afternoon (04:00 PM – 06:00 PM), when the sun hangs low on the horizon, aiming modules directly perpendicular to the sun causes the tall edge of one tracker row to cast long geometric shadows across the adjacent parallel row. This triggers destructive module bypass diode conduction and heavy mismatch loss.
| Tracking Strategy | Algorithm Mechanism | Low-Sun Shading Behavior | Yield Impact |
|---|---|---|---|
| Pure Astronomical Tracking | Follows exact sun position regardless of adjacent rows | Severe row-to-row casting shadows during sunrise/sunset | High clipping loss; risk of cell hotspot degradation |
| Standard 2D Backtracking | Rotates modules backward toward horizontal as sun drops below critical angle (\(\theta_{\text{crit}}\)) | Assumes perfectly flat desert terrain; completely shadow-free on flat ground | +18% to +21% yield gain over fixed-tilt |
| 3D Terrain-Adaptive Backtracking | Topographical LiDAR digital twin computes individual motor angles for rolling hills and undulating slopes | Prevents shadow casting on complex North-South / East-West slopes without over-flattening | +24% to +27% yield gain; eliminates terrain mismatch |
| Diffuse Sky Mode (Cloud Optimization) | Real-time pyranometer measures Direct Normal Irradiance (DNI) vs Diffuse Horizontal Irradiance (DHI) | Flattens tracker to 0° (horizontal) under overcast skies to harvest 360° diffuse sky dome | +2.5% to +4.0% extra yield during monsoon and cloudy days |
2. The Diffuse Light Strategy: Why Flattening Wins on Cloudy Days
During heavy monsoon cloud cover or thick winter haze in Northern India, Direct Normal Irradiance (DNI) collapses to near zero. Up to 90% of available solar radiation becomes diffuse radiation, scattered uniformly across the entire sky vault:
- The Tracking Mistake: If a tracker blindly continues tilting toward the hidden sun position (e.g., at a 45° angle), half of the module's field of view is blocked by the ground surface, seeing cold, low-albedo earth rather than sky.
- The Smart Horizontal Stow: Intelligent tracker controllers (e.g., Nextracker TrueCapture, TrinaTracker SuperTrack, Arctech) detect that the diffuse ratio (\(\text{DHI} / \text{GHI} > 0.75\)) has crossed the critical threshold. The motor automatically drives the table to 0° flat horizontal, maximizing the view-factor to the entire luminous sky dome. Both front and rear sides capture maximum omnidirectional diffuse photons.
3. Bifacial Albedo Height Optimization on Trackers
Unlike fixed-tilt tables where rear-side ground clearance decreases to near zero at the bottom edge, single-axis tracker torque tubes sit elevated at 1.5m to 2.2m above ground level (AGL) throughout the rotation cycle:
The Ground Clearance Advantage: Elevating the torque tube height (\(H\)) relative to the table width (\(W\)) achieves a favorable View-Factor ratio (\(H/W \ge 0.8\)). This allows reflected ground photons (albedo) to diffuse uniformly across the rear surface of bifacial cells, eliminating central torque tube shadow bottlenecks and unlocking a 12% to 16% pure bifacial rear gain (\(BG\)) in gravel, light-colored soil, or painted surfaces.
4. CAPEX vs LCOE Balance Sheet (10 MWp Project Case Study)
| Project Parameter (10 MWp Ground Mount) | Fixed-Tilt Monofacial (25° Tilt) | Bifacial + Smart 1P Single-Axis Tracker |
|---|---|---|
| Turnkey EPC Cost per MWp | ₹2.80 Crores / MWp | ₹3.25 Crores / MWp (+16% CAPEX for trackers) |
| Total Project Turnkey CAPEX | ₹28.00 Crores | ₹32.50 Crores |
| Specific Annual Generation (Yield) | 1,550 MWh / MWp / year | 1,960 MWh / MWp / year (+26.4% Generation!) |
| Total Year 1 Clean Electricity Produced | 15,500,000 kWh | 19,600,000 kWh (+4.1 Million kWh extra!) |
| Annual Revenue (@ ₹2.80/kWh PPA) | ₹4.34 Crores / year | ₹5.48 Crores / year (+₹1.14 Crores / year!) |
| Incremental CAPEX Payback | Baseline | 3.9 Years to recover tracker premium |
| 25-Year Levelized Cost of Energy (LCOE) | ₹2.24 / kWh | ₹1.92 / kWh (14.2% Lower LCOE!) |
