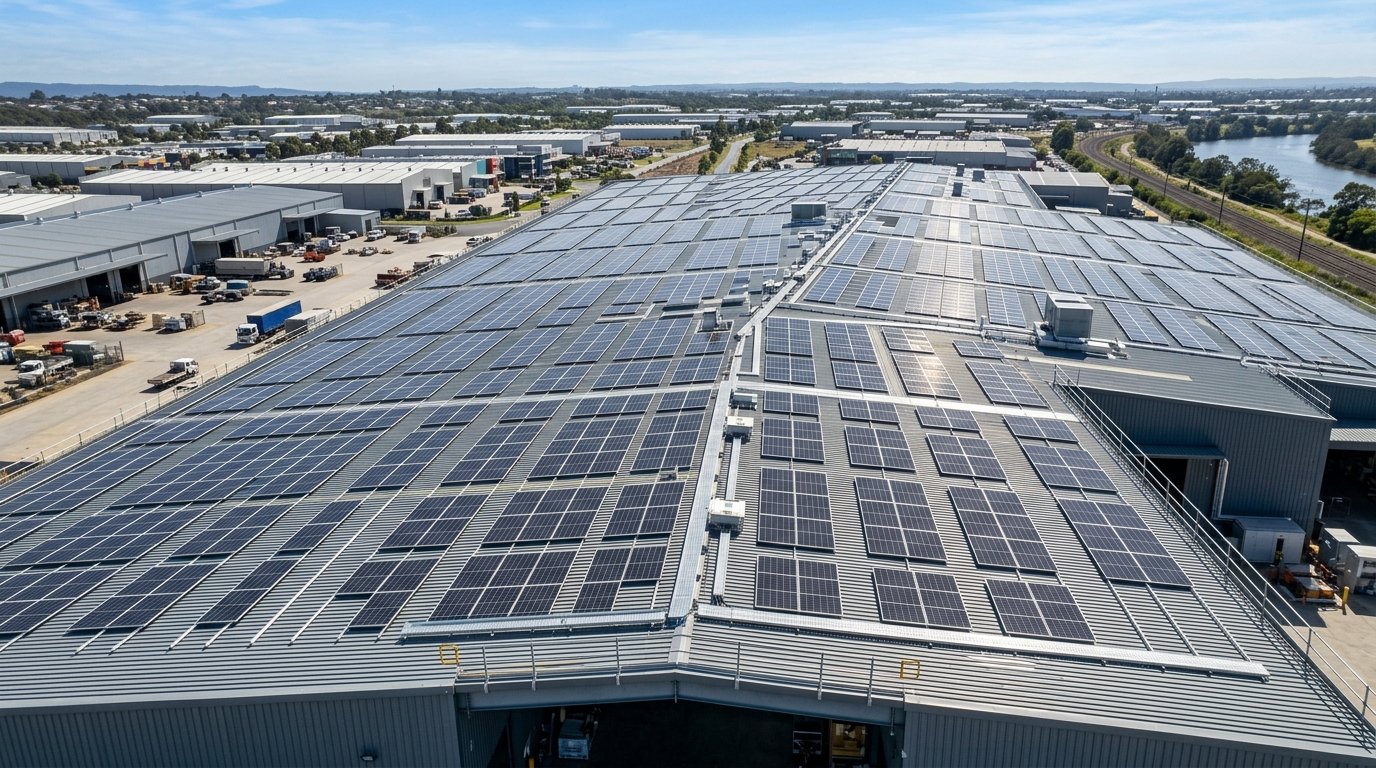

Industrial PEB Shed Solar Installation: Non-Penetrative Standing Seam Clamps vs Riveting (2026)
1. The Problem with Direct Screw Penetration on Industrial Roofs
A typical 200 kW industrial rooftop solar plant on a warehouse or manufacturing plant consists of approximately 360 large-format solar panels. Using traditional mounting brackets requires drilling over 1,400 to 2,000 holes through the metal roof.
During extreme Indian summer and winter thermal cycles (-5°C to 48°C ambient, 75°C metal surface), steel roofing sheets expand and contract by several centimeters. This movement shears rubber EPDM gaskets on fasteners, creating micro-gaps that cause devastating rainwater leakage on factory machinery, inventory, and electrical control panels below.
2. Non-Penetrative Standing Seam Clamps vs Penetrative Riveting
| Comparison Factor | Direct Screw / Rivet Penetration | Non-Penetrative Standing Seam Clamp |
|---|---|---|
| Roof Leakage Risk | Extreme (Gasket failure in 2-4 years) | Zero (0% Roof Penetration) |
| Roof Sheet Warranty | Voided by sheet manufacturer | 100% Preserved & Valid |
| Structural Dead Weight | High (Continuous steel purlin rails) | Ultra-Light (~10 to 12 kg / m²) |
| Wind Uplift Resistance | Prone to sheet tearing at fastener holes | Withstands up to 180 – 200 km/h winds |
| Installation Speed | Slow (Drilling + sealing per point) | 2.5x Faster (Bolt-tightening on seam rib) |
| Material Quality | Galvanized Iron / Zinc screws | Anodized AL6005-T5 Aluminum + SS304 Bolts |
3. Roof Profile Types & Corresponding Clamp Engineering
To ensure structural integrity and wind load resistance, the clamp geometry must precisely match the metal profile:
- Standing Seam / Klip-Lok 700 / 406 Profiles: Uses custom round-jaw or interlocking seam clamps that pinch the vertical metal standing rib without puncturing the sheet.
- Trapezoidal / Corrugated Sheets: Where seams are absent, specialized mini-rails with high-density EPDM waterproof base pads are secured directly to the high crown profile with certified watertight sealing rivets.
- Curved / Vaulted PEB Roofs: Flexible modular short-rail systems conform to structural radius, preventing panel frame bending.
4. Structural Load Calculations for Factory PEB Roofs
| Component Load | Weight per Square Meter (kg/m²) | Impact on PEB Purlin Capacity |
|---|---|---|
| Solar Panels (580W Dual-Glass Bifacial) | ~10.5 kg / m² | Standard dead load |
| Aluminium Seam Clamps & Walkway | ~1.8 kg / m² | Minimal structural load |
| Total Solar Superimposed Dead Load | ~12.3 kg / m² | Well within typical 15–20 kg/m² design margin |
5. 40% Accelerated Depreciation & Tax Savings for Factories
Industrial enterprises investing in captive rooftop solar can claim 40% Accelerated Depreciation (AD) under Section 32 of the Income Tax Act in year one, writing off substantial corporate tax liability while slashing monthly factory utility bills by 60% to 80%.
