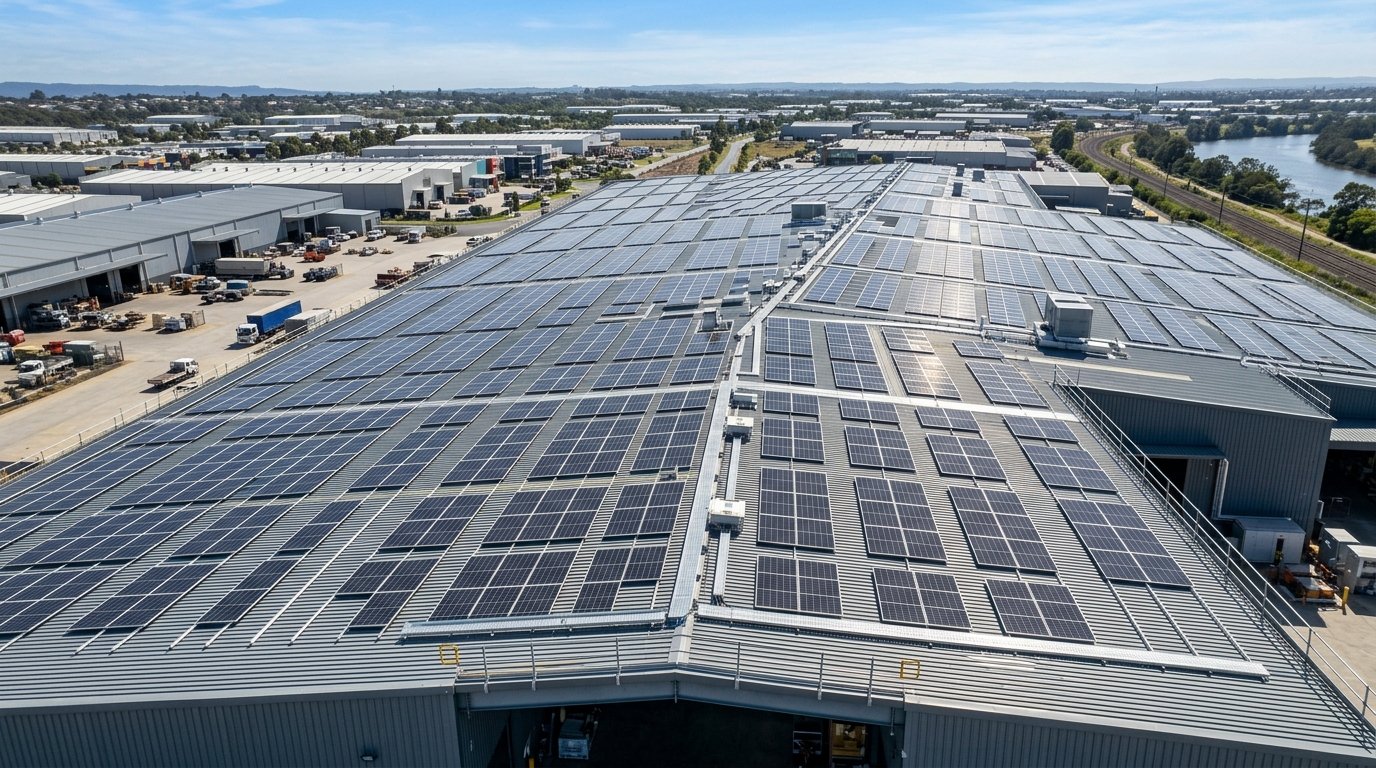

SolarCalculatorsPharma & Chemical Rooftop Solar: ATEX Flameproof Norms & Static Grounding 2026
1. Hazardous Area Classification on Chemical Rooftops
Under IS/IEC 60079-10-1 and PESO regulations, chemical facility roofs are mapped into distinct hazardous zones based on the frequency and duration of explosive gas atmosphere release:
| Hazardous Zone | Definition under IS/IEC 60079 | Typical Chemical Rooftop Location | Solar Equipment Installation Permissibility |
|---|---|---|---|
| Zone 0 | Explosive vapor mixture continuously present or for long periods | Inside solvent storage tanks, distillation columns, reactor headspaces | STRICTLY PROHIBITED — Zero electrical equipment allowed |
| Zone 1 | Explosive vapor mixture likely to occur in normal operation | Within 3 to 4.5 meters of reactor vents, scrubber exhausts, solvent relief valves | No PV modules or inverters allowed; minimum 4.5m clear buffer required |
| Zone 2 | Explosive mixture NOT likely in normal operation; if it occurs, persists only briefly | Perimeter of solvent transfer piping, general roof deck beyond 4.5m from vents | Permitted ONLY with Ex-d / Ex-nA flameproof switchgear and certified components |
| Safe / Unclassified Area | Zero explosive vapor release risk | Admin blocks, finished goods warehouses, utility electrical substation rooms | Standard industrial IP66 solar PV modules and string inverters fully permitted |
2. Anti-Static Bonding & Elimination of Electrostatic Discharge (ESD)
In standard commercial rooftop installations, slight static electric charges accumulated on aluminium module frames are harmlessly dissipated. In a chemical manufacturing facility surrounded by volatile solvent vapors with extremely low Minimum Ignition Energies (MIE < 0.2 mJ):
- Continuous Equipotential Loop: Every individual solar module frame must be bonded using serrated Stainless Steel SS316 grounding clips that bite through the non-conductive clear anodized coating into the raw aluminium matrix.
- Sub-1.0 Ohm Earth Resistance: All module rows, mounting structures, and metal cable trays must be linked via continuous \(25 \times 3\,\text{mm}\) copper or hot-dip galvanized grounding tape, terminating in dedicated chemical earth pits maintaining resistance strictly \(\le 1.0\,\Omega\).
- Zero Static Charge Accumulation: Ensures electrostatic charges generated by wind friction or dry atmospheric dust cannot build up to spark-ignition potentials.
3. Inverter & Switchgear Engineering for Chemical Atmosphere
1. Flameproof Ex-d Combiner Boxes: Any DC disconnect switch, string fuse box, or monitoring sensor installed on the roof deck near Zone 2 boundaries must be housed in cast aluminium alloy enclosures certified Ex-d IIB+H2 T6 (Explosion-Proof) capable of containing an internal explosion without igniting external solvent air.
2. Inverter Substation Placement: Central or string inverters must never be mounted directly on chemical synthesis reactor roofs. Inverters should be positioned inside an air-pressurized electrical room or mounted on the walls of safe utility buildings (boiler house, administrative warehouse) with DC cables routed via sealed, fire-stopped cable trenches.
3. Dual-Glass Glass-Glass Modules: Specialty chemical fumes (chlorine, sulfur dioxide, acid vapors) rapidly degrade traditional polymeric plastic backsheets. Dual-glass modules with POE (Polyolefin Elastomer) encapsulation provide an impervious hermetic barrier against acidic atmospheric attack.
4. Cleanroom HVAC Power Offset & 1 MW Turnkey ROI
Pharmaceutical formulation facilities require massive cleanroom air handling units (AHU) running HEPA filtration at 30 to 50 air changes per hour (ACPH) alongside industrial chiller loops maintaining sterile environments at 20°C and 45% relative humidity:
| Financial Dimension | 1 MWp Turnkey Pharma Industrial Rooftop Installation |
|---|---|
| Solar PV Array Sizing | 1,724 units of 580W TOPCon Bifacial Dual-Glass Modules |
| Turnkey Project Cost (Including Ex-d Protection & Flame Arrestors) | ₹3,75,00,000 (₹3.75 Crores) |
| Annual Solar Clean Generation | 1,520,000 units (kWh) / year |
| Industrial HT Electricity Tariff (Gujarat / Telangana average) | ₹8.75 / kWh |
| Annual Grid Electricity Cost Savings | ₹1,33,00,000 (₹1.33 Crores / year) |
| Accelerated Depreciation Tax Shield (40% Dep. @ 25% Corporate Tax) | ₹37,50,000 (Direct cash income-tax reduction in Year 1) |
| Annual Preventive Maintenance & Testing | ₹6,00,000 / year |
| Net Year 1 Economic Cash Benefit | ₹1.33 Cr savings + ₹37.5L tax - ₹6.0L O&M = ₹1.645 Crores |
| Simple Post-Tax Payback Period | 2.27 Years (~27 Months!) |
