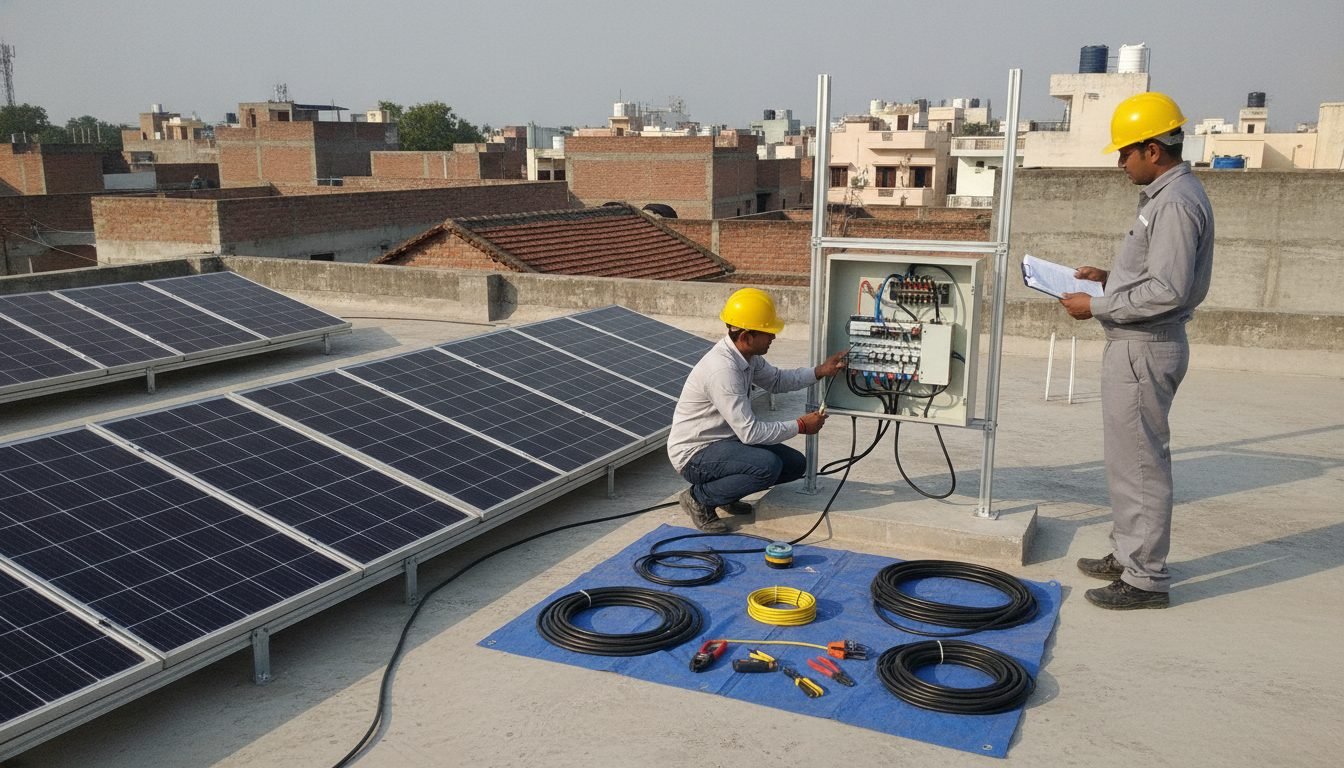

Why Using the Wrong Solar Cable Size Can Steal 8% of Your Electricity Generation
You can buy Tier-1 solar panels and top-rated European inverters, but if your installer connects them with undersized electrical cables, you can lose up to 8% of your total solar generation every single day as wasted heat.
Undersized cables cause high electrical resistance, massive voltage drop, and dangerous overheating. Let's explore the exact sizing standards required by Indian MNRE regulations to ensure maximum power transmission.
The Golden Rule: Voltage Drop Must Be Under 2%
According to IEC 60364-7-712 international standards, the total voltage drop from panels to the inverter (DC side) and from the inverter to the net meter (AC side) should never exceed 2% combined (ideally < 1% on DC and < 1% on AC).
If the distance between your rooftop inverter and the ground floor meter is 30 meters and you use thin 2.5 sq mm wire on a 5kW system, the AC voltage drop will cause the inverter voltage to spike over 265V, triggering continuous 'Grid Overvoltage Fault' shutdowns during peak noon!
Quick Reference Cable Sizing Chart
| System Size | DC Cable Size (Tinned Copper) | AC Cable Size (Distance < 20m) | AC Cable Size (Distance > 30m) |
|---|---|---|---|
| 1 kW to 3 kW (1-Phase) | 4 sq mm XLPO DC Cable | 4 sq mm Copper / 6 sq mm Al | 6 sq mm Copper |
| 5 kW (1-Phase / 3-Phase) | 4 sq mm or 6 sq mm DC | 6 sq mm (1-Ph) / 4 sq mm (3-Ph) | 10 sq mm (1-Ph) / 6 sq mm (3-Ph) |
| 10 kW (3-Phase) | 6 sq mm DC Cable | 6 sq mm 4-Core Copper | 10 sq mm 4-Core Copper |
Why Dedicated Solar DC Cables Are Mandatory
Never allow an installer to use ordinary domestic PVC house wire for DC strings:
- Dedicated solar cables feature Tinned Copper Conductors to prevent corrosion and oxidation.
- They have Cross-Linked Polyolefin (XLPO) double insulation rated for 1500V DC and certified for 25 years of extreme UV exposure, rain, and 90°C ambient temperatures.
✅ Inspection Tip
Check the cable sheath text on your roof. It should read: "TUV EN 50618 / Solar Cable 1500V DC 1x4.0mm² UV Resistant". This guarantees long-term fire safety and peak generation efficiency.
