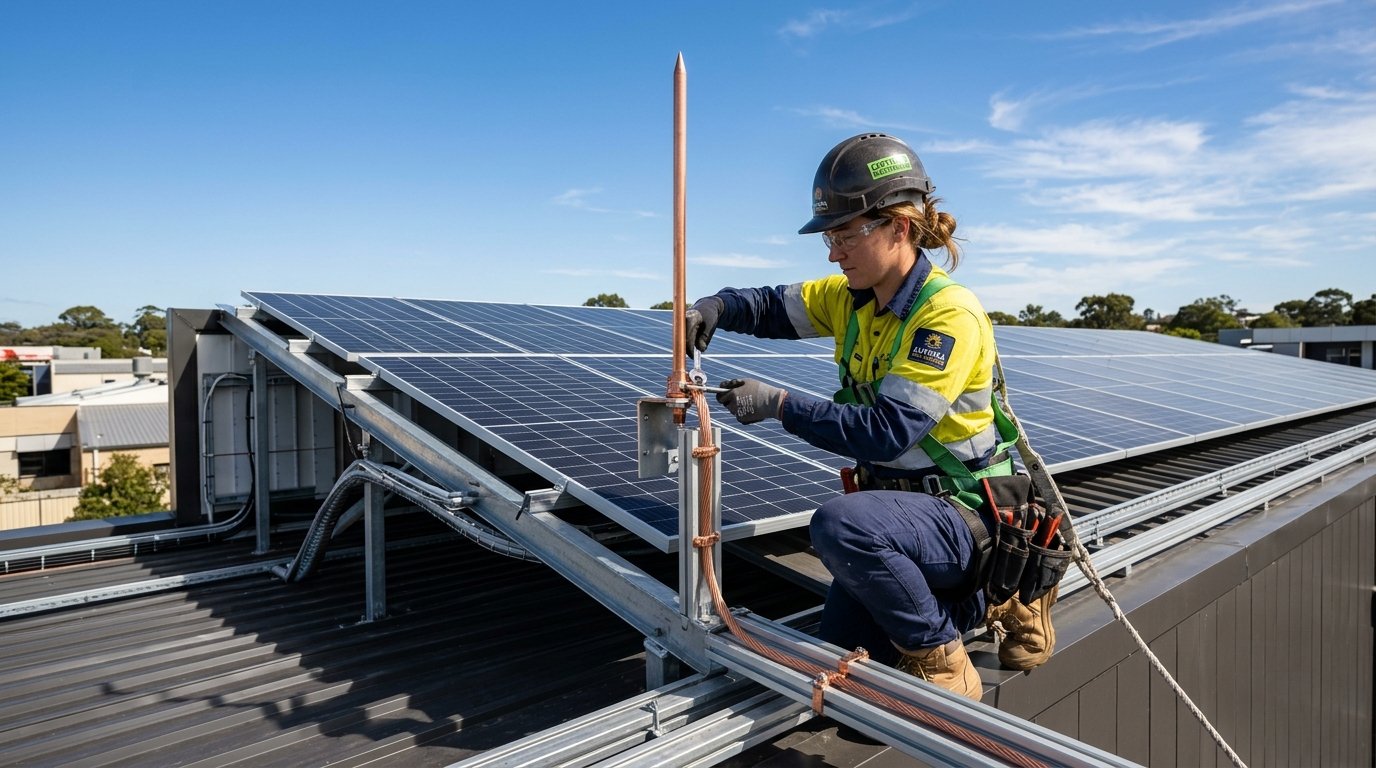

SolarCalculatorsSolar Earthing & Lightning Protection Guide 2026: IS 3043 Standards, Chemical Earth Pits & SPD Rules
Key Highlights & 30-Second Takeaway
Essential technical & policy facts for solar consumers in India:
- Mandatory 3 Separate Earth Pits: 1 for Solar Structure / Panel Frames, 1 for AC/DC Inverter Earth, and 1 dedicated isolated pit for the Lightning Arrester.
- Chemical Earth Electrodes: Maintenance-free copper-bonded steel rods backfilled with bentonite carbon compound maintain low soil resistance (<5 Ohms) permanently.
- Direct Lightning vs Surges: ESE lightning arresters protect the rooftop from direct atmospheric hits, while SPDs clamp electrical voltage surges inside the inverter.
Rooftop solar power plants are elevated structures with metallic frames and high-voltage electrical circuits exposed directly to open skies. Without proper earthing and lightning protection engineered according to IS 3043 and IEC 62305, lightning surges, short circuits, or static buildup can destroy expensive inverters, cause house fires, and pose severe electric shock hazards.
1. The Mandatory 3-Earth Pit System for Rooftop Solar
| Earth Pit Name | Connected Hardware | Electrode Specification | Target Resistance |
|---|---|---|---|
| 1. DC Structure Earth Pit | Solar Panel Aluminum Frames & MMS Mounting Structure | Copper-Bonded Rod (14.2mm x 2m) | < 5 Ohms |
| 2. AC / Inverter Earth Pit | Inverter Body, ACDB & DCDB Enclosures | Copper-Bonded Rod (14.2mm x 2m) | < 5 Ohms |
| 3. Lightning Arrester (LA) Pit | Dedicated isolated copper conductor from rooftop LA rod | Heavy-Duty Chemical Earth Pipe (50mm x 3m) | < 2 Ohms (Dedicated) |
The Lightning Arrester must ALWAYS have its own isolated, dedicated down-conductor and separate earth pit placed at least 2.5 to 3 meters away from other pits. Connecting LA to inverter earthing channels million-volt lightning discharges directly into household appliances!
2. Surge Protection Devices (SPD): Type 1 vs Type 2
While lightning arresters intercept physical atmospheric lightning outside the building, Surge Protection Devices (SPDs) installed inside the DCDB and ACDB distribution boxes clamp microscopic voltage spikes (induced by distant lightning strikes on grid transmission lines):
- DC SPD (1000V DC): Diverts high-voltage solar string spikes to the earth pit within nanoseconds.
- AC SPD (320V AC): Prevents external grid voltage transients from blowing up the inverter microprocessor motherboard.
