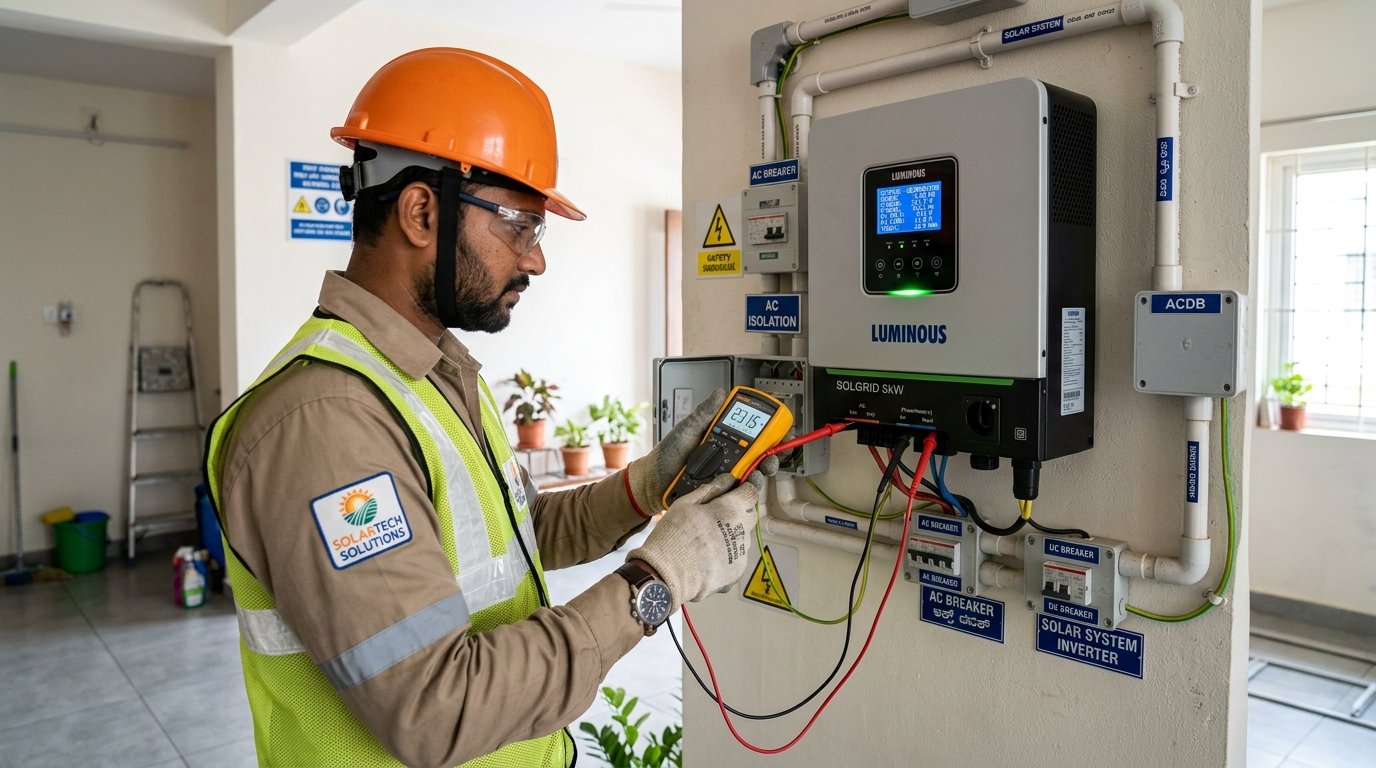

⚡ Installer & Homeowner Diagnostic Guide (2026): When your solar inverter display flashes a red fault light and stops feeding energy to the grid, over 80% of errors are external electrical grid or wiring faults, not hardware breakdowns. This field guide covers diagnostic procedures for top inverters (Growatt, Solis, Sungrow, Deye, Havells, Luminous, Polycab).
1. The Top 5 Most Common Inverter Error Codes in India
| Common Fault Code / Name | Root Cause in Indian Grid Environment | Danger Level | Action Required |
|---|---|---|---|
| 1. Grid Overvoltage (OV-G / Err 02 / Grid Volt High) | Grid AC voltage exceeds DISCOM upper trip limit (>253V Single Phase / >440V 3-Phase). | Low (Safety Trip) | Measure AC grid voltage; adjust inverter country grid-code parameter (India standard: 195V–253V); notify DISCOM. |
| 2. PV Isolation Low (Riso Low / Err 08 / Earth Fault) | DC insulation resistance between panel string and ground drops below 100kΩ (damaged cable or water ingress in MC4 connector). | High (Fire & Shock Hazard) | Isolate DC strings, test with insulation multimeter (Megger) between PV(+)/PV(-) and Earth. Replace faulty MC4. |
| 3. Arc Fault Detected (AFCI / Err 28 / Err 32) | Micro-arcing detected due to loose DC terminal crimping, chewed cables, or burnt bypass diodes. | High (Active Fire Risk) | Inspect all MC4 joints with a thermal camera; re-torque screw terminals to specified Nm torque; clear AFCI alarm. |
| 4. Grid Frequency Out of Range (OF-G / UF-G / Err 04) | DISCOM grid frequency dips below 47.5 Hz or spikes above 52.0 Hz. | Low (External Grid) | Wait for grid stabilization; if persistent on DG supply, calibrate DG engine governor to 50.0 Hz. |
| 5. Inverter Over-Temperature (OverTemp / Err 14) | Inverter heatsink exceeds 85°C due to direct afternoon sunlight exposure or blocked cooling fans. | Medium (Thermal Throttling) | Install an overhead solar canopy shade over the inverter; clean fan dust filter; ensure 30cm side clearance. |
2. Deep-Dive: Fixing "PV Isolation Low" (Riso Low) in Monsoon & Winter
The "PV Isolation Low" error is the #1 complaint during Indian monsoons and high-humidity winter mornings. Inverters constantly measure resistance between the DC circuits and the ground before synchronizing. If Riso < 100kΩ, the inverter refuses to start to prevent electrocution.
Step-by-Step Diagnostic Process:
- Switch off the DC Isolator: Turn off DC isolator switch and AC MCB.
- Disconnect Strings: Unplug String-1 and String-2 from the MPPT inputs.
- Measure DC Voltage to Earth: Using a digital multimeter set to DC 1000V:
- Measure between PV(+) and Earth (should decay to ~0V).
- Measure between PV(-) and Earth (should decay to ~0V).
- If a constant steady voltage appears (e.g. 180V DC to earth), there is a direct ground short at module #5 or #6 in that string!
- Locate Damaged Cable / MC4: Inspect DC cables pinched underneath aluminium structure rails or resting in pooled rooftop water puddles. Wrap in UV-resistant conduit and replace sub-standard unbranded MC4 connectors with certified Staubli MC4 connectors.
3. Solving the Chronic "Grid Overvoltage" (OV-G) Shutdown
In rural and semi-urban feeders with low local power consumption, rooftop solar plants feeding power back push the local transformer voltage up. When AC voltage exceeds 253V AC (230V + 10%), the inverter automatically trips to protect household appliances.
| Solution Approach | Implementation Method | Effectiveness |
|---|---|---|
| Thicker AC Cable Gauge | Upgrade from 4 sq mm to 6 sq mm / 10 sq mm copper cable from inverter to main meter board to reduce internal voltage drop (V_drop = I × R). | High (Reduces local voltage rise by 3V to 6V) |
| Inverter Volt-Watt Mode (P(V)) | Enable active power curtailment when voltage exceeds 250V (inverter throttles output rather than completely shutting down). | Excellent (Keeps solar generating at 80% instead of 0%) |
| DISCOM Transformer Tap Adjustment | Request local DISCOM sub-station junior engineer (JE) to lower off-load tap setting by 2.5% on the distribution transformer. | Permanent Fix for entire neighborhood |
⚠️ WARNING: Never bypass the internal grid-voltage safety thresholds in the inverter settings beyond CEA limits (maximum 260V for short spikes). Exposing household appliances (refrigerators, LED TVs, inverters) to sustained voltages >260V will burn power supply capacitors.
