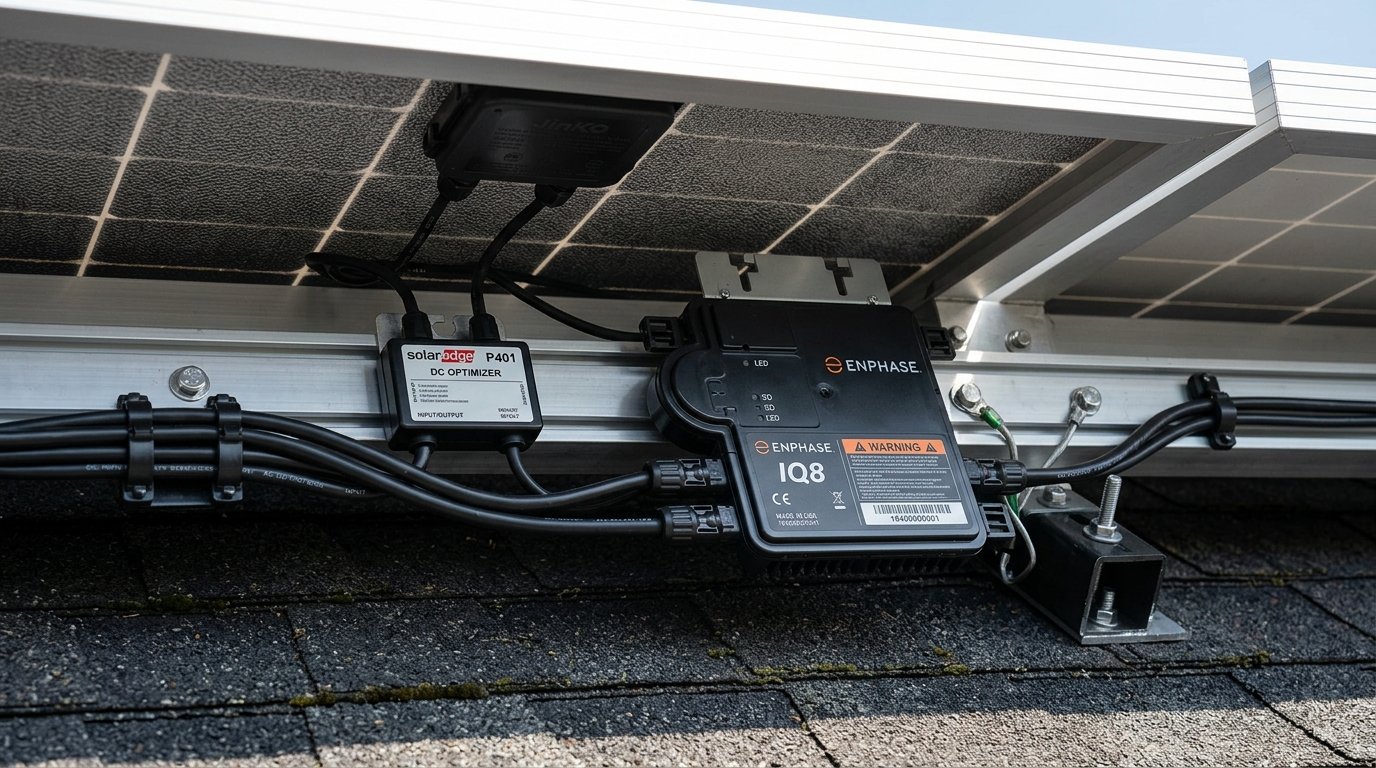

Micro Inverters vs String Inverters with DC Optimizers: 2026 Shading & Cost Comparison
1. How Micro Inverters & DC Optimizers Overcome String Inverter Bottlenecks
In a standard string inverter setup, panels are connected in series like a single hose. If one panel receives shadow or dirt, current across the entire string is throttled down to the level of the weakest panel.
Module-Level Power Electronics (MLPE) decouple each solar module, allowing every individual panel to produce maximum available energy independent of its neighbors:
- Micro Inverters (Enphase IQ8, Hoymiles, Deye): A miniature inverter is mounted directly behind each panel (or 1 microinverter for 2-4 panels). It converts DC into grid-synchronized 230V AC right on the roof. No high-voltage DC exists on your premises!
- DC Optimizers (SolarEdge, Tigo Energy): A DC-to-DC buck-boost converter is attached to each panel to optimize voltage/current at maximum power point (MPPT), then feeds regulated DC down to a central inverter.
2. Detailed Head-to-Head Comparison: Micro Inverter vs DC Optimizer vs String
| Feature | Standard String Inverter | String Inverter + DC Optimizers | Micro Inverters (Enphase/Hoymiles) |
|---|---|---|---|
| MPPT Level | 1 to 2 MPPTs per 10-15 panels | Module-Level (Individual Panel) | Module-Level (Individual Panel) |
| Rooftop Voltage (DC Fire Risk) | High DC (600V – 1000V DC) | Low DC (Safe Rapid Shutdown < 50V) | Zero High DC (Only 230V Safe AC) |
| Shading Tolerance | Poor (Entire string output drops) | Excellent (Only shaded panel drops) | Excellent (100% Isolated MPPT) |
| Multi-Directional Roofs (E-W-S) | Difficult / Needs multiple MPPTs | Fully Flexible | Unlimited Roof Orientations |
| Standard Product Warranty | 5 to 10 Years | 12 to 25 Years (Optimizer) / 12Y (Inverter) | 25 Years Standard Warranty |
| Single Point of Failure | Yes (If inverter trips, system is 0%) | Yes (Central inverter remains single point) | No (If 1 micro fails, 90% system runs) |
| System Cost Premium in India | Base Cost (₹) | + 15% to 25% Premium | + 30% to 45% Premium |
3. Safety Factor: Why High-End Homes are Choosing Micro Inverters
Central string inverters run lethal 600V to 1,000V Direct Current (DC) through conduits on your terrace walls. In the event of cable insulation nicking or bird bites, continuous DC arcing does not have a natural zero-crossing (unlike AC), posing an active fire hazard.
Micro inverters convert power to standard household 230V AC directly underneath the panel. When grid power drops, micro inverters automatically shutdown within milliseconds (Rapid Shutdown compliance), making your rooftop 100% safe for children, pets, and maintenance workers.
4. Cost vs Extra Generation Payback Analysis (5 kW System)
| Metric | Standard String Setup | Micro Inverter Setup (Enphase IQ8) |
|---|---|---|
| 5 kW System Gross Cost | ₹2,75,000 | ₹3,65,000 |
| PM Surya Ghar Subsidy | - ₹78,000 | - ₹78,000 |
| Net Investment | ₹1,97,000 | ₹2,87,000 (₹90k extra) |
| Annual Output in Partial Shade | ~6,200 Units (kWh) | ~7,400 Units (kWh) (+1,200 units) |
| Extra Annual Electricity Savings (@ ₹10/unit) | — | ₹12,000 / year |
| Additional Payback Period for Micro Inverter | — | ~6.5 to 7.5 Years |
| 25-Year Inverter Replacement Cost | ₹45,000 × 2 replacements = ₹90,000 | ₹0 (25-Year Manufacturer Warranty) |
