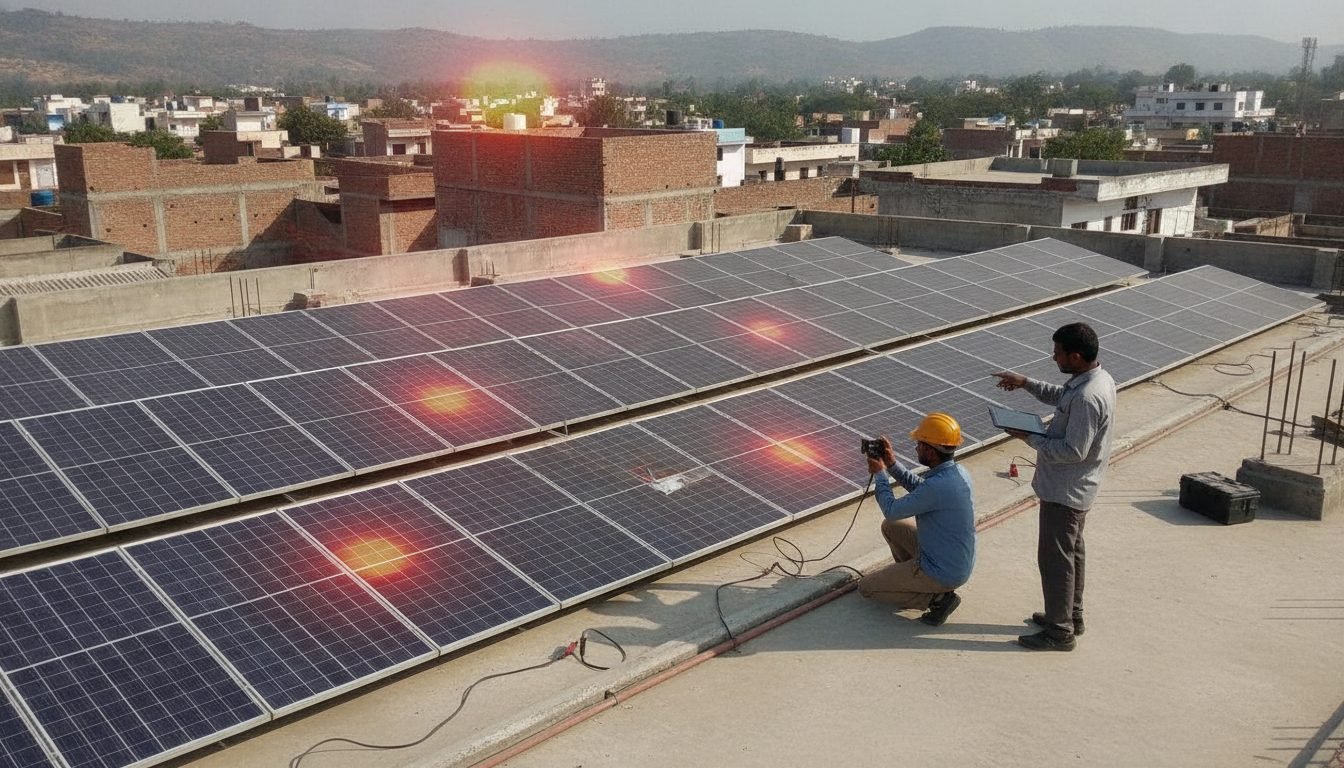

SolarCalculatorsSolar Panel Hotspot Formation, Bypass Diode Failure & Drone Thermography Guide 2026
1. The Solid-State Physics of Hotspot Formation
In a standard crystalline silicon solar module, cells are wired in series. The current flowing through every cell in the series string must be identical (\(I_{ ext{string}} = I_{ ext{cell}}\)). When one cell suffers obstruction or internal resistance defects:
- Current Limitation: The shaded cell cannot generate the full string photocurrent (\(I_{ ext{sc}}\)).
- Reverse Bias Polarization: The remaining unshaded cells in the string force current through the impaired cell, forcing it into negative voltage (reverse bias).
- Localized Power Dissipation: The cell dissipates power equal to \(P_{ ext{dissipated}} = I_{ ext{string}} imes |V_{ ext{reverse}}|\). With string currents running at 13A to 18A on modern 550W–600W TOPCon modules, this produces 40W to 90W of concentrated thermal energy in an area no larger than a coaster.
| Defect Cause | Thermal Signature (\(\Delta T\)) | Primary Mechanism | Criticality Level |
|---|---|---|---|
| Bird Dropping / Soil Spot | +25°C to +45°C | Localized surface shading; reversible if washed immediately | Medium (Progresses to High if baked) |
| Cell Microcrack / Broken Busbar | +35°C to +70°C | High current crowding along crack line or solder tab disconnection | High (Permanent Cell Damage) |
| Shorted Bypass Diode | Entire 1/3 module sub-string +15°C to +20°C | Diode failed closed, permanently bypassing 24–48 cells | Critical (33% Power Loss) |
| Open-Circuit Bypass Diode | +60°C to +110°C on shaded cell | Diode failed open; zero protection against extreme reverse bias | Emergency (Fire & Delamination Risk) |
2. Bypass Diode Failure Modes: Short vs Open Circuit
Bypass diodes inside the IP68 module junction box are designed to conduct and clamp reverse voltage to approximately \(-0.7 ext{V}\) (Schottky junction drop) when a cell group is shaded. However, repetitive thermal cycling in hot climates (where junction box temperatures exceed 85°C) leads to diode failure:
- Short-Circuit Failure (Most Common): Over-voltage transients (from nearby lightning or induced grid surges) puncture the semiconductor barrier. The diode conducts permanently. One-third of the module produces zero voltage, cutting module output by 33.3% and dragging down the entire MPPT string voltage.
- Open-Circuit Failure (Most Dangerous): Continuous high-current bypass overheats the diode junction until wire bond melting occurs. The diode disconnects completely. Shaded cells receive zero clamping protection, heating past 160°C, causing EVA backsheet pyrolysis, charred laminate spots, and potential rooftop fires.
3. Drone Thermography Standards & IEC 62446-3 Protocols
Manual handheld thermography is cost-prohibitive on multi-megawatt rooftops and ground mounts. Radiometric drone thermal inspections (featuring uncooled microbolometers, 640x512 resolution, \(\le 40 ext{mK}\) NETD sensitivity) must comply with strict testing windows:
- Minimum Solar Irradiance: Testing must occur under continuous, steady-state clear sky irradiance \(\ge 700\, ext{W/m}^2\) (ideally \(800 - 1000\, ext{W/m}^2\)).
- Wind Velocity Limits: Wind speed must remain below \(4\, ext{m/s}\) (14.4 km/h); excessive convection airflow cools surface glass, masking underlying thermal anomalies.
- Viewing Angle & Emissivity: Drones must maintain a sensor angle between 5° and 30° off-perpendicular to eliminate reflections from the sun and sky into the Germanium infrared lens (Module Glass Emissivity \( arepsilon pprox 0.85 - 0.90\)).
4. Warranty Recovery & Legal Protocol Under IEC 61215
When hotspots are identified, tier-1 module warranties (e.g., Jinko, Longi, Waaree, Adani) require formal evidence before issuing RMA (Return Merchandise Authorization) replacements:
Step 1: Radiometric Orthomosaic Map: Submit GPS-tagged thermal and RGB high-resolution imagery demonstrating temperature anomaly \(\Delta T \ge 20^\circ ext{C}\) above healthy adjacent cells.
Step 2: String I-V Curve Trace: Perform an I-V curve trace showing notched staircase steps in the P-V characteristic curve caused by bypassed sub-strings.
Step 3: Insulation Resistance (Megger Test): Conduct dry/wet insulation test at 1000V/1500V DC verifying whether backsheet thermal degradation has compromised dielectric insulation resistance below the \(40\, ext{M}\Omega\cdot ext{m}^2\) standard threshold.
