Solar String Combiner Box (SCB) vs Inbuilt Inverter MPPT Protection Guide (2026)
Verified Energy & Solar Policy Specialist
⚡ Key Takeaway: In modern rooftop and ground-mounted solar engineering, choosing between an External String Combiner Box (SCB / Array Junction Box) and Inbuilt Multiport MPPT Inverters can impact DC cabling costs by 20-30%, fire safety ratings, and ongoing maintenance downtime.
1. What is a Solar Array Junction Box / String Combiner Box?

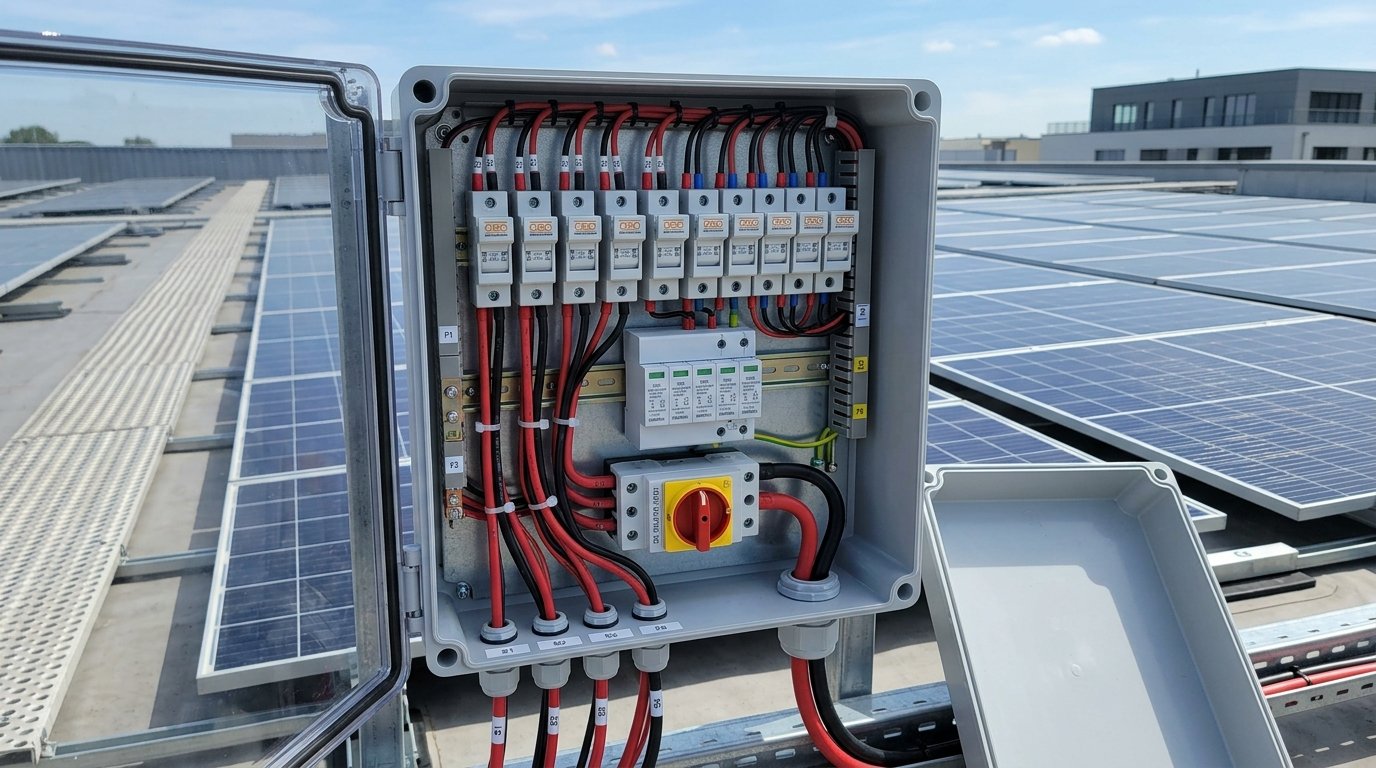

An Array Junction Box (AJB) or String Combiner Box (SCB) is a weather-proof enclosure (IP65/IP67 rated) that aggregates multiple parallel solar panel strings into a single high-current DC output feeder before routing power to the central or string inverter.
Every professional SCB integrates four crucial electrical safety layers:
- DC Fuses (1000V / 1500V DC rated, 15A - 30A): Protects each individual string against reverse overcurrent faults when one string experiences shading or diode failure.
- DC Surge Protection Device (SPD Type 1+2 / Type 2): Diverts high-voltage lightning surges and switching transients safely to ground.
- DC Load Break Isolator / Disconnector Switch: Enables technicians to safely isolate the solar PV array during servicing without arcing hazards.
- Blocking Diodes (in specialized off-grid boxes): Prevents reverse current flow from battery banks into panels during nighttime.
2. External SCB vs Integrated MPPT Inverter Comparison
| Comparison Parameter | External String Combiner Box (SCB) | Modern Multi-MPPT Inbuilt Protection |
|---|---|---|
| Best Suited For | Large Ground Mount & Central Inverter Systems (>500 kW) | Residential & Commercial Rooftops (3 kW to 100 kW) |
| DC Cable Length & Cost | Consolidates cables on the roof; requires shorter, thicker main DC run | Requires individual 4 sq.mm / 6 sq.mm DC cables from every string to inverter |
| MPPT Tracking Granularity | Paralleled strings share one MPPT; higher mismatch losses from partial shading | Individual MPPT per 1-2 strings; maximum yield under complex roof shadows |
| Maintenance & Fault Finding | External fuse replacement is fast and easy without opening inverter | Inbuilt fuses require certified inverter technician service |
| System Balance of System (BOS) Cost | Additional cost of ₹15,000 - ₹35,000 per box | Built into inverter purchase price (lower overall Capex) |
3. Essential CEA & IS 3043 Compliance Checklist
According to the Central Electricity Authority (CEA) Technical Standards and MNRE guidelines for 2026:
- Enclosure Material: Polycarbonate or FRP with UV stabilization and fire-retardant grade (UL94-V0).
- DC Fuse Sizing Rule: Fuse rating must be sized at $1.56 imes I_{sc}$ (Short Circuit Current) of the PV module.
- SPD Grounding: The ground terminal of the Type 2 DC SPD must connect via a dedicated 16 sq.mm green/yellow earthing conductor to the primary DC earth pit.
